Squeeze Laser
Our Squeeze Laser (SL) is a compact device to be placed onto your optical table (footprint 40 cm x 60 cm). It generates squeezed vacuum states in the continuous wave regime at 1550 nm or 1064 nm. The systems achieve squeezing levels of up to 10dB in the MHz frequency regime. The squeezing regime can be extended to the kHz range with a dedicated locking scheme. The output is a free-space TEM00 spatial mode.
A conventional laser at half wavelength drives the Squeeze Laser and is integrated by Noisy Labs. If a suitable laser is already available in the customer's laboratory, it can also be used to integrate with the Squeeze Laser.
Squeeze Laser
Sale price€200.000,00
Regular price (/)
Optical characteristics
Characteristics | Symbol | Min. | Typ. | Max. | Unit | |
---|---|---|---|---|---|---|
Coherent input power | - | - | - | 300 | - | mW |
Peak output squeeze factor | - | - | - | 10 | - | dB |
Mode of operation | - | - | - | CW | - | - |
Output beam mode | - | - | - | TEM00 | - | - |
Central wavelength | Pump laser dependent | λ | - | 1064 or 1550 | - | nm |
6 dB squeeze factor up to | - | - | - | 30 | - | MHz |
Polarization of output signal | - | - | - | Linear, s-pol | - | - |
General characteristics
Characteristics | Symbol | Min. | Typ. | Max. | Unit | |
---|---|---|---|---|---|---|
Average ambient operating temperature | - | T | 19 | - | 25 | °C |
Ambient operating temperature range | - | - | T-1 | T | T+1 | °C |
Storage temperature | Deviations from operating temperature might require realignment | - | 15 | - | 30 | °C |
Warm up time to full stabilization | - | - | - | 60 | - | min |
Humidity | - | - | 30 | 40 | 50 | % |

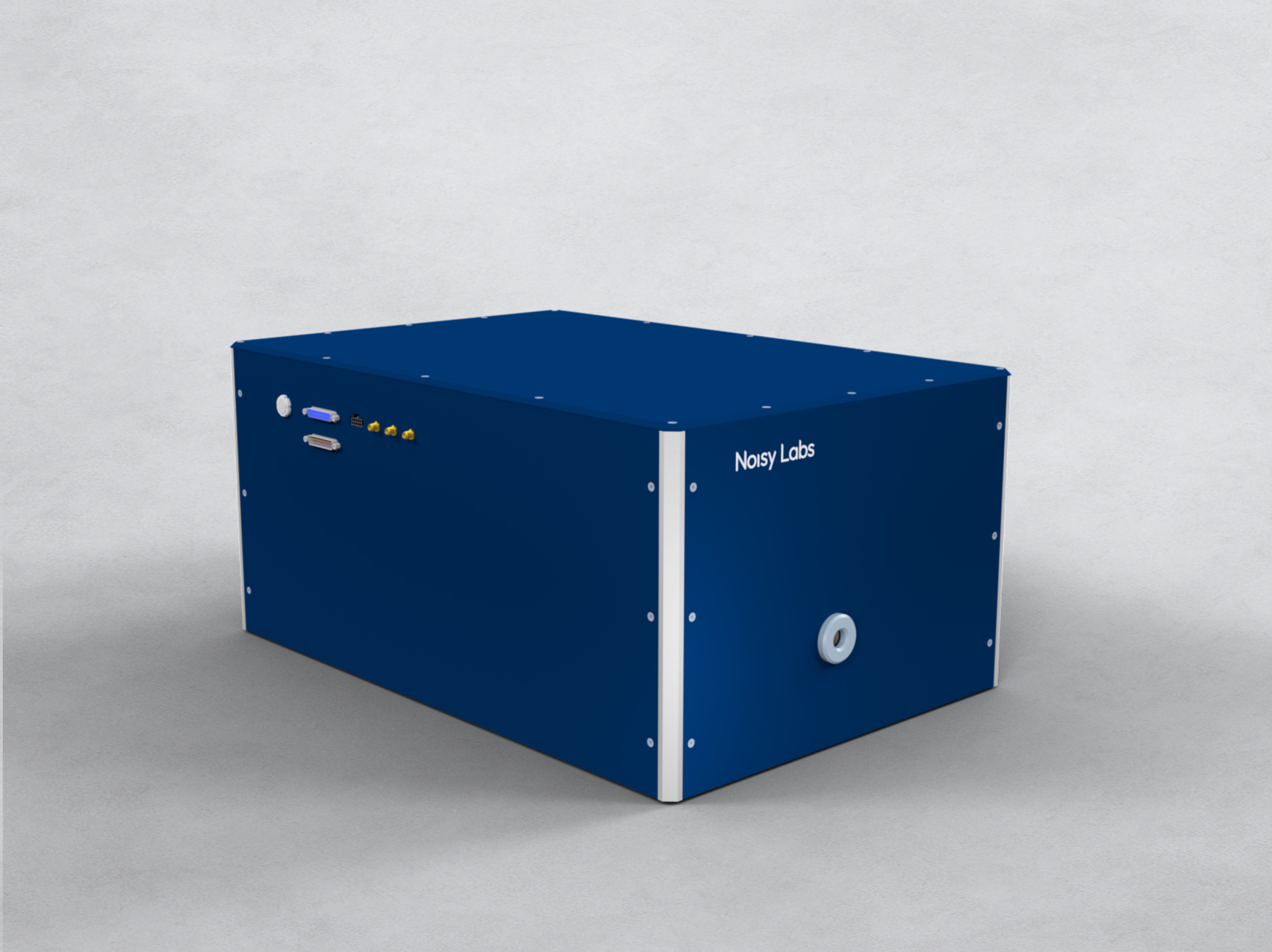

Squeeze Laser optical module dimensions | W x H x D | - | - | 610 x 290 x 410 | - | mm |

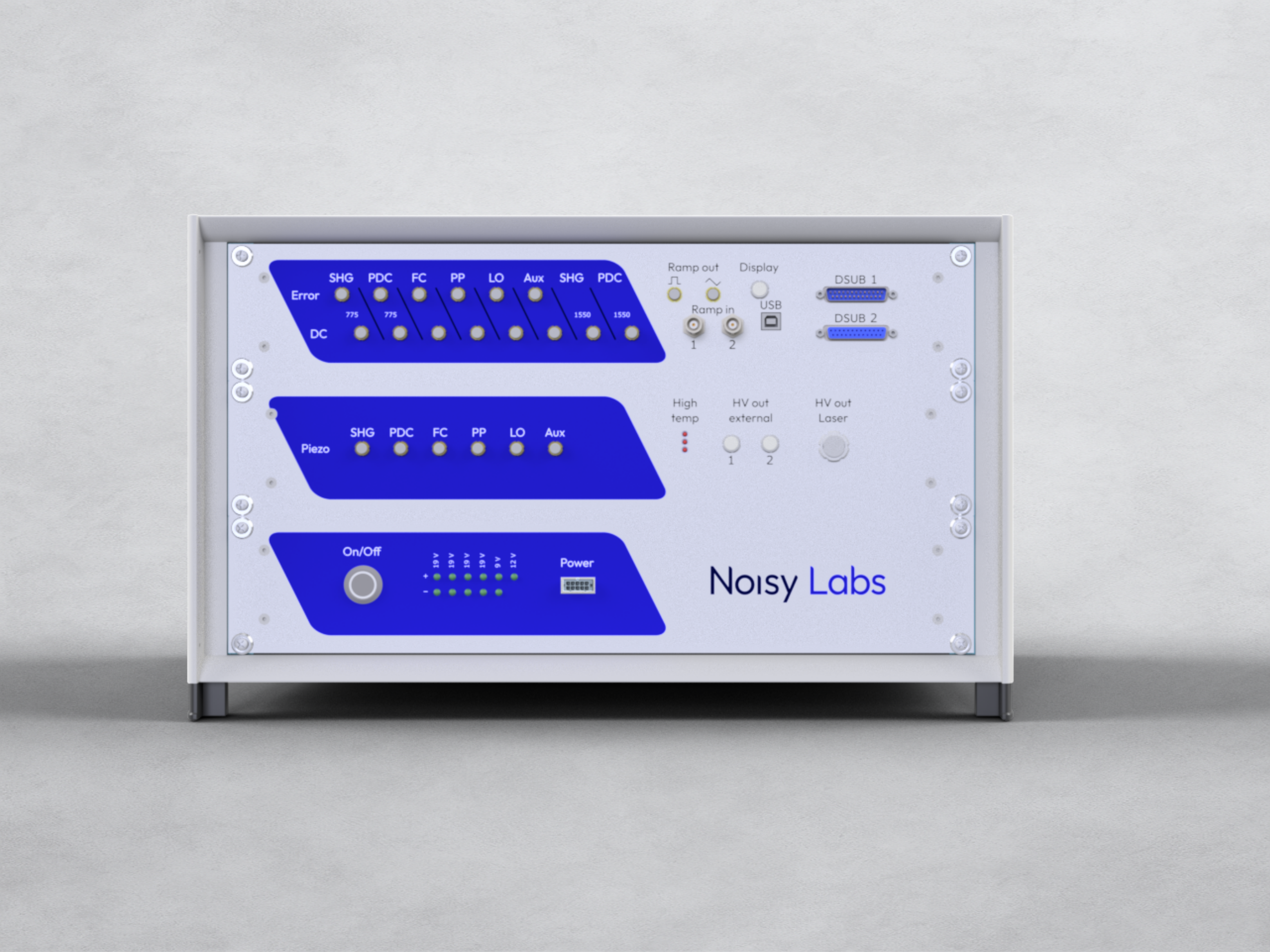

Control unit dimensions | - | - | - | 19 inch, 9 U | - | - |
Control Interface
Characteristics | Symbol | Min. | Typ. | Max. | Unit | |
---|---|---|---|---|---|---|

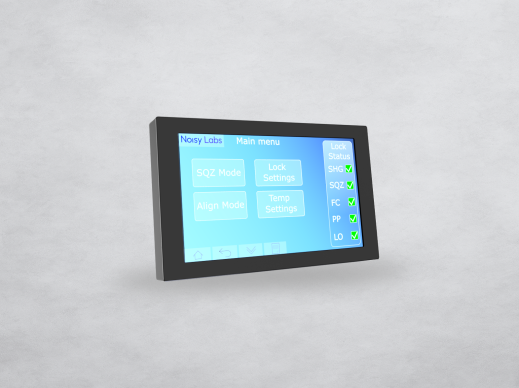

Controls | 7” TFT touch display for GUI navigation | - | - | - | - | - |
Electrical characteristics
Characteristics | Symbol | Min. | Typ. | Max. | Unit | |
---|---|---|---|---|---|---|
Supply Voltage | - | - | - | 230 | - | VAC |
Connection | - | - | - | CEE-7/7 | - | - |
